An Electric Overhead Travelling (EOT) Crane is very important instrument handling system used in steel industry, steel plants and shipyards etc. When we use EOT Crane we have to follow 200-meter runway same safety major like check levelling, span measurement, and diagonal alignment for the safety of the worker on that site.

And also increase the life span of the equipment and give maximum productivity. This checking is very important because small issue make larger damage on the work site.

Importance of EOT Crane Alignment Inspection

That is very important to inspect the crane alignment proper or not. Because 200-meter EOT crane continuously work with heavy load movement like in: runways, rail tracks etc. And this crane work on very heavy load and their alignment was vibrating continuously during work. So this very important to regular checking of the crane is important.

Grab This: Shaft Alignment Service in Indore

Always checking the alignment of the crane improves the performance of the crane and early check of the crane helps to identify some issue and resolve in time for save by major problem.

Levelling Inspection of 200-Meter EOT Crane

The levelling of the of both crane rail will in the same height. If any rail alignment is not in the proper height all the load come on the motors, gearboxes, bearings, and wheel assemblies. And the cause is very dangerous and will damage the crane mechanism.

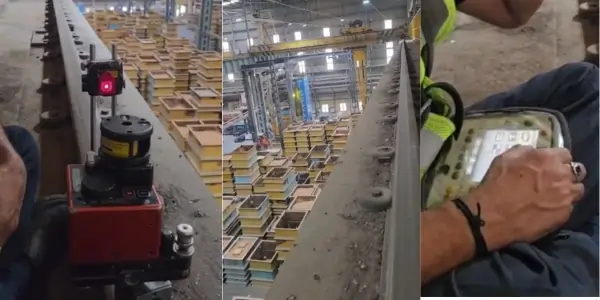

Modern laser alignment equipment provides better accurate measurements across long distances. Engineers checks:

• Rail elevation differences
• Local high and low spots
• Girder support levels
• Structural settlement
• Column alignment

So after check all the level of the crane like: as rail shimming, structural adjustments corrections restore proper levelling. And the crane work smoothly.

Span Measurement Inspection

The Crane span means the distance between the both crane rails remain same. And if the span not in the proper distance all the heavy load of the works on crane wheels and mechanism of the crane.

Grab This: Shaft Alignment Service in Bhopal

So during the checking of the crane span. We have to check rail are in the proper in 200-meter runway end-to-end.

After that tester use laser measuring systems for span check without requiring manual measurements.

Engineers inspect for:

• Rail convergence or divergence
• Local span deviations
• Structural movement
• Rail installation errors
• Expansion-related displacement

 If the alignment distance is in proper way, then reduce resistance, improve crane tracking, and extend the service life of wheels and rails.

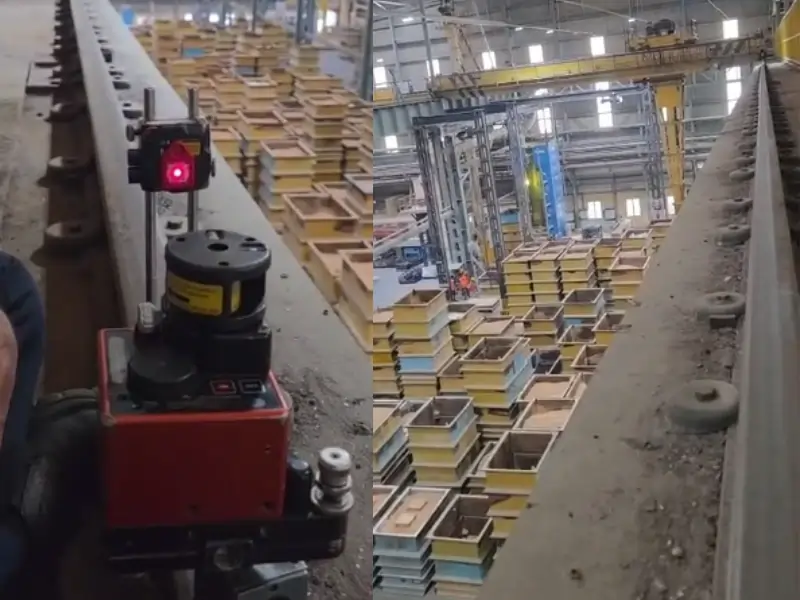

Diagonal Alignment Inspection

A diagonal alignment checking is also very important. Because if the diagonal measurements differ the crane not move proper and also break their alignment during work. So is important that diagonals of the crane are in the perfect angle.

Improper diagonal alignment can cause:

• Crane skewing
• Increased wheel flange wear
• Rail will damage
• Gearbox will overloading
• Higher power consumption
• Frequent maintenance requirements

So to check the diagonal alignment engineers use laser alignment equipment. They check the diagonal and distance between the rail and give all reports of the crane diagonals. If it’s correct they reduce the work load on the wheels and rails work proper in the manner.

Benefits of Laser Alignment Technology

Laser alignment measurement technology is a modern testing of the crane. They show high accuracies and give proper result about the crane. If any issue comes they proper report on that. And the measure advantages are:

Grab This: Shaft Alignment Service in Delhi

• High results accuracy
• Fast  checking  process
• Digital report’s
• Decrease human error
• Long-distance measurement capability
• Improved preventive maintenance planning

This laser alignment checking is very friendly for use and gives accurate results and they helps the industry to avoids the costly production interruptions.

Why Regular Inspection Matters?

Always check of the Levelling, Span Measurement, and Diagonal Alignment Inspection of a 200-Meter EOT Crane. Gives update status of the crane and there is any issue resolve on time. And it’s improving the operational work of the crane and this regular checking increase the life span of the crane equipment.

And this check is very important of the Industries such as steel manufacturing, power plants, and cement factories etc. Rely on periodic alignment checking to maximize crane work power and reduce maintenance expenses.

Final Remarks

The 200-meter EOT crane is aligned in the proper manner. They can work smoothly, accurately, and they can handle the heavy load accurately. And the life of the equipment will longer. . Routine checking of the levelling, span measurement, and diagonal alignment inspections.

Grab This: Shaft Alignment Service in Lucknow

With using the laser alignment tools for check the crane alignment accuracies and any problem comes they resolve that on time. So, this enhances safety, and lowers long-term maintenance costs.
