Geometric Inspection of 40 Meter Lime Kiln Bearing Pedestal in Indore
Generally, the large rotary lime kilns are that type of equipment’s which is essential in industries for their cement, steel and mining processing. A 40-meter lime kiln always operates under the heavy loads and the high temperatures, by making the alignment precise is very critical for smooth operation. Even a small deviation in pedestal geometry can led to uneven Tire loading and unexpected equipment failure.
A geometric inspection of a 40-meter lime kiln bearing pedestal is a type of maintenance which prevent the alignment which verifies the position and level of the pedestal. By using the advanced laser measuring instruments and regular inspections help to diagnose deviations in the early stages and help the maintenance team to make correction at the early stage.
Why Geometric Inspection Is Important?
The bearing pedestal helps the kiln shell and allows it to rotate in a smooth way. If by chance the pedestal becomes misaligned due to the thermal expansion or the mechanical stress, then the entire kiln system could be affecting.
Grab This: Shaft Alignment Service in Indore
A professional geometric inspection helps:
- Ensure smooth kiln rotation
- Reduce bearing and tyre wear
- Prevent excessive vibration
- Improve production efficiency
- Extend equipment lifespan
- Minimize unplanned shutdowns
- Reduce maintenance costs
Accurate inspections help to improve the overall safety and the reliability of the kiln.
Parameters Checked During Inspection
A complete geometric inspection involves measuring several critical parameters of the bearing pedestal and surrounding components.
Pedestal Levelling
Each level of the bearing pedestal is measured to ensure that both sides are at the elevation which is correct. And the uneven levels can create an additional stress on bearings and affect the overall rotation of the kiln.
Centre Line Alignment
The line at the center of the bearing pedestal checks against of the kiln’s design axis and the proper center alignment ensures that rotary kiln rotates without any unnecessary side loading.
Horizontal and Vertical Position
The pedestal’s position is verified in both horizontal and vertical directions. Even small positional errors can influence the alignment of the entire kiln assembly.
Bearing Centre Height
The center height of the bearings gets inspecting to confirm compliance with engineering specifications. Incorrect height may lead to improper tire and roller contact.
Parallelism and Squareness
Engineers verify that the bearing pedestals remain parallel and square with the kiln centre line. This helps distribute loads evenly during operation.

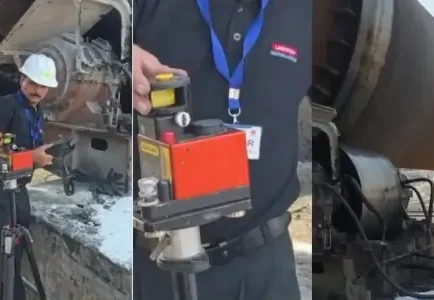

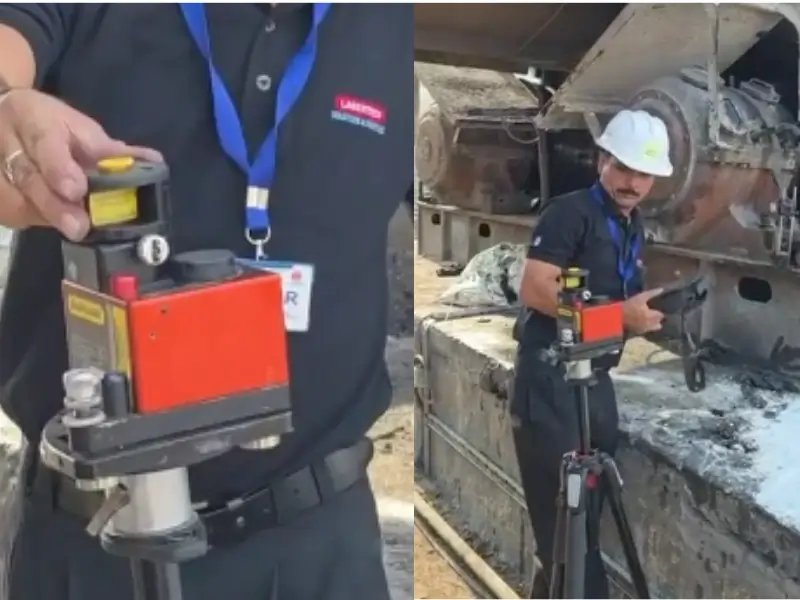

Advanced Laser Measurement Technology
Modern geometric inspections perform by using advanced laser alignment and measurement systems. Compared to traditional methods, laser instruments provide significantly higher accuracy and faster measurements.
Benefits of laser-based inspection include:
- High measurement precision
- Faster inspection process
- Digital reporting
- Reduced human error
- Real-time measurement results
- Minimal production interruption
Laser systems allow engineers to identify even minute deviations that may not be visible through conventional measurement techniques.
Inspection Procedure
A typical geometric inspection of a 40-meter lime kiln bearing pedestal follows a systematic process.
The inspection team first reviews engineering drawings and equipment specifications. Laser instruments are then installed to establish reference points and the kiln centre line.
The values records; and they are compared with the design tolerance to measure any kind of deviations with it.
When the inspection is completed then the engineers prepare a proper report which contains the data of measurement or any kind of deviation analysis and they provide recommendations for the corrective action if required.
Benefits of Regular Geometric Inspection
Routine inspections provide long-term operational advantages, including:
Grab This: Shaft Alignment Service in Bhopal
- Improved bearing life
- Reduced mechanical failures
- Better kiln stability
- Lower energy consumption
- Increased production efficiency
- Reduced maintenance downtime
- Improved equipment reliability
- Better return on maintenance investment
Preventive inspections help the maintenance teams to schedule repairs before the problem become critical.
Industries That Require Lime Kiln Inspection
Geometric inspection services are widely used in industries operating rotary kilns, including:
- Cement plants
- Steel manufacturing
- Lime production
- Mining industries
- Chemical processing plants
- Mineral processing facilities
- Refractory manufacturing
These industries usually rely on the accurate alignment to maintain the continuous production and reduce the failure rate of them of the equipment’s.
Why Choose Professional Inspection Services?
Experienced alignment engineers usually use calibrated laser instruments and inspections method which are proven to achieve the highly accurate results.
Grab This: Shaft Alignment Service in Delhi
Professional inspection services usually provide comprehensive reports that support the maintenance planning.
A qualified inspection team do not measure only the current condition of the bearing pedestal but they also measure potential alignment issues before they affect the production.
Verdict Up
A geometric inspection of a 40-meter lime kiln bearing pedestal is needed for maintaining the accuracy, stability and the performance of rotary kiln systems.
Grab This: Shaft Alignment Service in Lucknow
By verifying the pedestal leveling, center alignment and the bearing position with advanced laser measurement technology. Therefore, industries can reduce the downtime and they can extend the life of the equipment’s and improves the operational efficiency.
