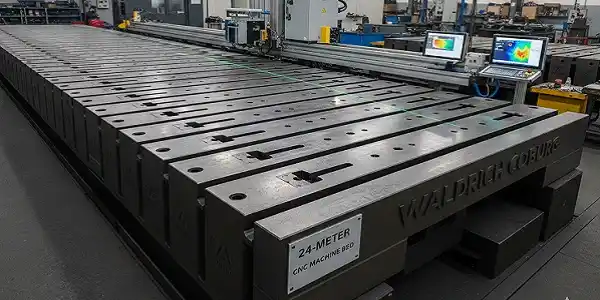

Alignment & Levelling Inspection of WALDRICH COBURG 24-Meter CNC Machine Bed in Lucknow
It is important to ensure the alignment and leveling inspection of the 24-meter long CNC machine bed of WALDRICH COBURG, as this forms the foundation of the machine’s accuracy and performance. Such large and advanced machines design for high-load and high-precision applications, particularly in aerospace, power generation, shipbuilding, and heavy industries. Even a minor deviation in the flatness of the bed can seriously affect cutting accuracy, geometric stability, and the quality of the final product.
Importance of Alignment & Levelling in Large CNC Machines
In high-load machining processes, measurement accuracy gets assessing at the micron level. Therefore, proper leveling of the CNC machine bed alignment are essential so that the guideways and rail system maintain precise geometry across the entire 24-meter area. Even a small lapse in this process can lead to the following problems:
Grab This: Shaft Alignment Service in Delhi
- Tapered machining results
- Poor surface finish
- Increased tool wear
- Excessive vibration
- Premature mechanical failure
The precise machine bed levelling inspection machine’s foundation plays a crucial role in providing balanced load distribution and long-term geometric stability. In the context of large CNC gantry or portal machines, uneven settling of the foundation and thermal effects can cause alignment deviations over time.
Tools & Equipment Used
The CNC alignment inspection process requires high-precision instruments, adding:
Grab This: Shaft Alignment Service in Kolkata
- Precision spirit levels (0.02 mm/m or higher accuracy)
- Electronic levels
- Laser alignment systems
- Autocollimators
- Dial indicators
- Granite straight edges
Nowadays, advanced laser interferometry systems are using to take precise measurements over large areas, such as 24 meters. With the help of these systems, even minute errors in flatness and linear alignment can be detecting effectively.
Step-by-Step Alignment & Levelling Procedure
1. Foundation Verification
It is important to assess the condition of the foundation before machine bed inspection, as settlement, uneven grouting, and loose anchor bolts can affect leveling accuracy.
2. Initial Rough Levelling
Technicians first check the entire bed from an accurate level and bring it to an approximately correct level. Where there is a noticeable difference, it is corrected with adjustable foundation bolts.
3. Longitudinal Levelling Check
The level is run along the guideway for the entire 24 meters. Readings are taken at different points so that the high and low points can be clearly understood.
4. Transverse Levelling Measurement
The level is also checked across the width of the bed to ensure that balance is maintained on both sides.
5. Laser Alignment Verification
The use of a laser alignment system to verify the straightness and parallelism of the rails ensures the gantry’s precise and smooth movement.
6. Fine Adjustment & Torque Locking
After adjustment, the bolts are tightened in sequence with torque to ensure there is no distortion in the machine. The final measurement shows that everything is according to the standard.
Common Alignment Challenges in 24-Meter CNC Machines
Massive machines like WALDRICH COBURG 24m CNC face special challenges:
- Thermal expansion over long bed lengths
- Foundation settlement in heavy-load environments
- Structural stress from continuous machining
- Improper initial installation
Regular CNC machine levelling inspection minimizes these risks and extends tool life.
Recommended Inspection Frequency
For heavy machining environments, it is advisable to conduct:
- Levelling inspection during installation
- Re-verification after 3–6 months
- Annual alignment checks
- Immediate inspection after relocation or major maintenance
Preventive inspection reduces costly downtime and ensures consistent production quality.
Benefits of Proper CNC Machine Bed Alignment
A correctly levelled and aligned 24-meter CNC machine offers:
Grab This: Shaft Alignment Service in Lucknow
- Improved machining accuracy
- Enhanced surface finish quality
- Reduced vibration and mechanical stress
- Extended tool and component lifespan
- Higher productivity and operational efficiency
Maintaining proper CNC geometric accuracy also helps meet ISO and manufacturer compliance standards.
Final Remarks
In conclusion proper alignment and leveling of the bed of the WALDRICH Coburg 24-meter CNC machine is not just maintenance, but the foundation of perfect engineering. Regular inspection of this huge and expensive equipment ensures its structure remains strong, geometric accuracy is maintained, and machining performance remains reliable at all times.
As we know by systematically implementing CNC machine alignment procedures and inspection protocols, manufacturers not only maintain production capacity but also ensure the highest accuracy across the entire 24 meters.
