Proper EOT crane alignment is very important like safe and smooth material handling. Even a small misalignment capable of lead to unnecessary wear and tear, reduced performance, frequent breakdowns, and serious safety risks. By understanding the common alignment mistakes and learning how to fix them, you capable of increase the lifespan of your EOT crane alignment errors and improve overall reliability in daily operations.

1) Rail Parallelism Errors

One of the most common alignment problems is when the crane lack of rail parallelism. The crane starts moving diagonally instead of straight this is known as “crabbing.” This not only causes the wheel flanges to wear out faster, but also increases power usage and puts uneven stress on the crane structure.

Grab This: Laser Shaft Alignment Services in Delhi

How to Fix It:

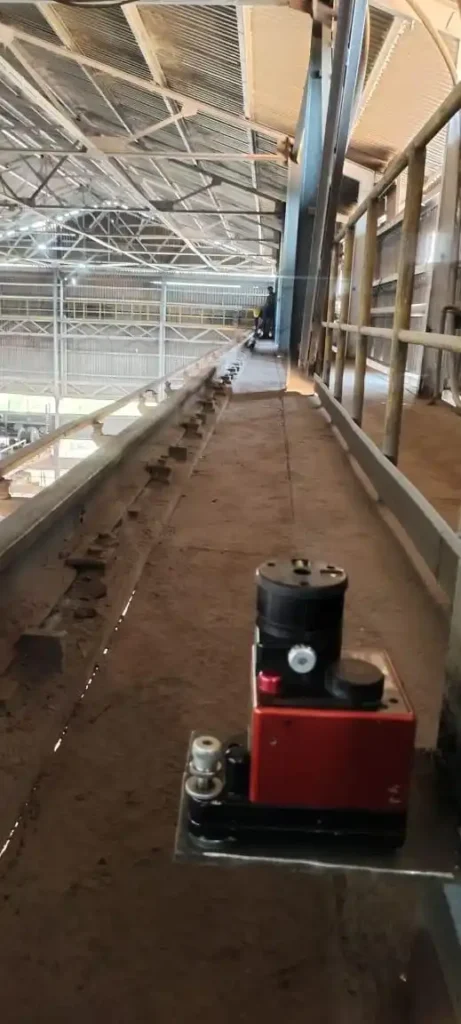

• Start by checking the rail alignment survey using laser tools or other correct controlling instruments.
• If the rails are out of line, release the clips and carefully adjust the rail until it is correctly aligned.
• Make sure the rails are fixed firm in place and study adding rail pads to stop shifting in the future.
• Carry out routine overhead crane maintenance to save an eye on rail parallelism and detect any changes early.

2) Rail Level Difference

When the two crane rails are not the same height, then bridge is capable of twist as it moves. This creates extra stress on the structure, quickly wearing down the wheels and causing EOT crane wheel wear bearings to fail sooner than expected.

How to Fix It:

• Check the rail height regularly at multiple points along the track.
• Add shims or grout wherever needed to level the rails.
• Make sure the foundation is firm and inspect it like cracks, settlement, or damage.
• Build up the support beams if you notice any signs of structural fault.

3) Improper Wheel Alignment

When crane wheels are not aligned properly, the crane faces more resistance while moving. This causes the flanges to rub, generates excess heat, and many time results in motor overload. Wheel misalignment usually happens because of worn wheel parts, improper installation, or shifting rails.

How to Fix It:

• Check wheel dimensions and alignment gauge, squareness, and toe-in/toe-out.
• Realign or replace the wheel assemblies if needed.
• Make sure the wheel base aligned correctly with the rail centerline.
• If need, re-machine the wheel flanges or switch to self aligning wheel systems like better performance.

4) Incorrect End Carriage Alignment

The end carriages must always be perfectly perpendicular to the bridge girder. If they are even slightly off angle, the crane start to skew during travel, putting extra stress on mechanical parts and increasing wear over time.

How to Fix It:

• Measure the diagonal distances to check if everything is square and aligned.
• Loosen and adjust bolts or back to correct the angle of the end carriage.
• After adjustments, perform load tests to ensure the crane runs smoothly without skewing.

5) Rail Joint Gaps and Misaligned Joints

Loose, uneven, or misaligned rail joints capable of create the crane to vibrate, make noise, experience sudden jerks, and put extra impact on the wheels. These problems not only increase wear but also less the strength and safety of the crane.

Grab This: Laser Shaft Alignment Services in Kolkata

How to Fix It:

• Check all rail joints like gaps, cracks, or any displacement.
• Tighten the fish plates and replace any worn or damaged joint bolts.
• Grind or machine the rail ends so the crane capable of move smoothly around the joints.
• If possible, use continuously welded rails to completely eliminate joint related issues.

6) Poor Gantry Track Foundation

A weak or settling foundation capable of produce the crane rails to shift, tilt, or sink over time. This often leads to repeated alignment problems, even if the rails get daily adjusting.

How to Fix It:

• Assess the foundation and test the soil for stability.
• Build up or rebuild any weak sections of the foundation.
• Make sure proper drainage to prevent soil erosion caused by water.
• Install concrete sleepers or reinforced beams to provide long term stability.

Final Thoughts

Preventing EOT crane alignment errors is much easier and more cost efficient than fixing damage after a breakdown. By performing daily crane rail alignment checks, scheduling regular laser alignment services, and using precision measurement tools, you capable of greatly reduce wear, improve safety, and extend the crane’s lifespan.
